SPIN COATER
and silent oil-free pump







Overview
The 12 series includes single-head, multi-head, single-speed, multi-speed and other products to meet different needs of customers.
12a glue machine is mainly used in photoresist coating, boron coating and other processes. The equipment has the characteristics of high leveling efficiency and convenient use.The speed and time of the glue are divided into multiple time periods and are steplessly adjustable.
The electrical circuit is reliable, the motor runs smoothly, especially the motor torque is large, which is superior to similar products.
The suction piece uses a solenoid valve to control the gas path, which is suitable for the process of the assembly line. One air pump can work with several glue machines at the same time, which improves the efficiency.






The main technical parameters
1, working power supply AC220V 50Hz
2, power supply power 200w
3, the diameter of the mounting piece is 10/20/30...250mm
4, 4 speed, time period (1v, 2v, 3v, 4v, t000) memory
5, eight sets of procedures (a1-a8) memory
6, acceleration consistency (error) ± 0.5%
7, speed stability ± 1%
9, uniform glue time 0-240 seconds
10, speed range 100-7000, 50 to 1 file
11, the size of 250x300x300mm
12, weight glue machine 11kg, optional vacuum pump 5kg










12A SPIN COATER
basic screen display interpretation

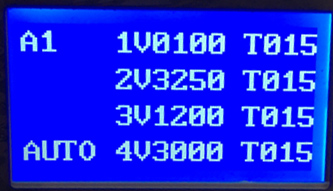

[Process parameters] The [prog] key cyclically displays "a1" and "a2"......"a8".
[Run modification] The [fn] key "auto" automatically runs the screen, and "edit" changes the speed and time screen.Kuto k1 ---k8 (speed correction method), under the kuto screen, press + to speed up

   Under the edit(auto) screen, press [] (or []) to move the cursor.
     1v0100 t005” Note: The first stage, speed 100 rpm, time t=5 seconds “2v1200 t005”
3V2400  T015
     4v3000 t015” Note: In the fourth stage, the speed is 3000 rpm and the time is 15 seconds.
                        Speed ​​range v=0200-7000, time t=0-240 seconds
                        Unused stage, speed and time set to v0200, t000


You can use the [+] [-] keys to change the set speed (50 to 1st 100-7000), time (0-254 seconds).

Need to modify the vacuum release time after the end of the program to prevent the last flying piece;
Need to start the pedal and automatically open the vacuum valve;
Need acceleration adjustment, the size of light and heavy items are fully adapted;
Need to fine-tune the speed so that the actual speed is the same as the set value, use k1-k8, kut mode;
Steps
  1. Turn on the external vacuum system, turn on the external power supply, turn on the power switch, use the [Process Parameters] key, select "a1", if you need to modify the speed and time, press the [Run Modify] button, combined with the [] [] key Then use the [+] [-] keys to adjust the speed and time to the process requirements. If there is an actual speed error, there is a fine-tuning method.
  2. Place the substrate at the center of the suction cup, open the red vacuum switch, and check if the substrate is firmly sucked. (It is strictly forbidden to apply glue to the substrate smaller than the outer circumference of the suction cup.)Apply a proper amount of photoresist to the center of the substrate and press the green glue switch......(If there is an abnormal situation, press the green glue start button, the suction cup will stop.) Wait for the motor to stop rotating, then close the vacuum and take the film.
3. Select the appropriate speed according to the viscosity of the photoresist and the working environment temperature. Generally, the glue time is about 5~20 seconds.
4. Place the glued glass piece on the glass chuck and place it in a metal box. Place it in the oven according to the requirements of the glue. Pre-bake the general photoresist before baking at 90 °C for 30 minutes.
5. The glue machine must be turned off after the top cover is closed, and it is strictly forbidden to touch it when the glue machine is rotated.Hand grabbing the suction cup of the glue machine can cause the machine to be protected and needs to be returned to the factory for processing. Please be aware.















Precautions
  1. It is strictly forbidden to apply glue to the substrate smaller than the outer circle of the suction cup.When the equipment is used up, please remove the suction cup to prevent the glue from sticking to the suction cup.
  2. Regularly clean the glue in the rubber pan to prevent the liquid level from being too high and pour into the motor.
  3. According to the specific working environment, regularly check the vacuum line and regularly clean the solenoid valve to keep the machine in a normal state.
  4. Power should be cut off during maintenance!!!
